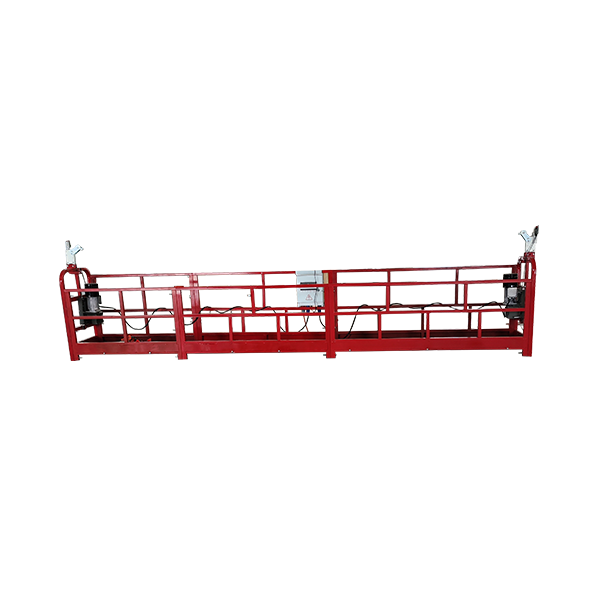

ZLP800 Electric Suspended Platform

ZLP800 platform has a fast lifting speed, generally up to 9.3±0.5m/min, can quickly reach the specified height, improve work efficiency. The platform is designed with a rated load of 800kg, which can carry heavy personnel and equipment to meet the needs of various high-altitude operations. The platform is equipped with multiple safety devices, such as safety locks, braking systems, limit switches, etc., to ensure safety during operation. With electric control, the operation is simple and easy to understand, convenient for operators to quickly get started. It can be used for building exterior wall construction, decoration, cleaning, and high-altitude work in ship construction.
Inquire Now
Product Details Specification FAQs

Descriptions

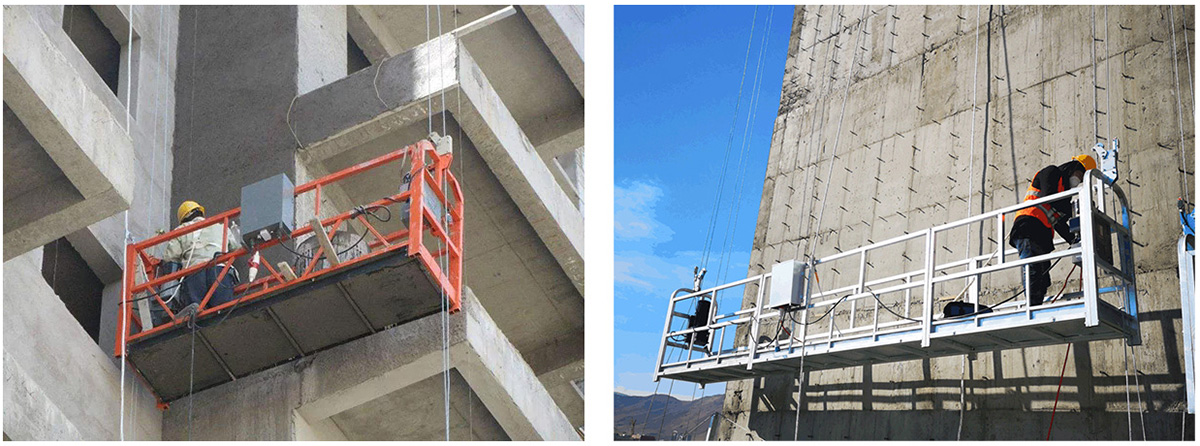

ZLP800 electric suspension platform is widely used in the following fields because of its high efficiency, safety and easy operation.Construction field: Used for building exterior wall construction, decoration, cleaning and other high-altitude work.Ship repair: In the process of ship repair, used for the construction, maintenance and operation of the hull exterior.Other fields: such as the repair and maintenance of Bridges, DAMS and other projects, as well as the installation and maintenance of high-altitude billboards



ZLP series suspended platform components

  • 01

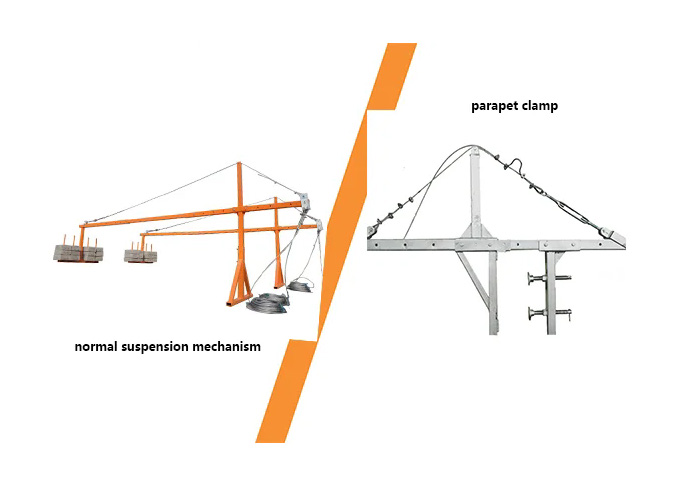

    Anchor Structure

    Suspension mechanism or parapet clamp, chosen according to actual usage scenarios.

  • 02

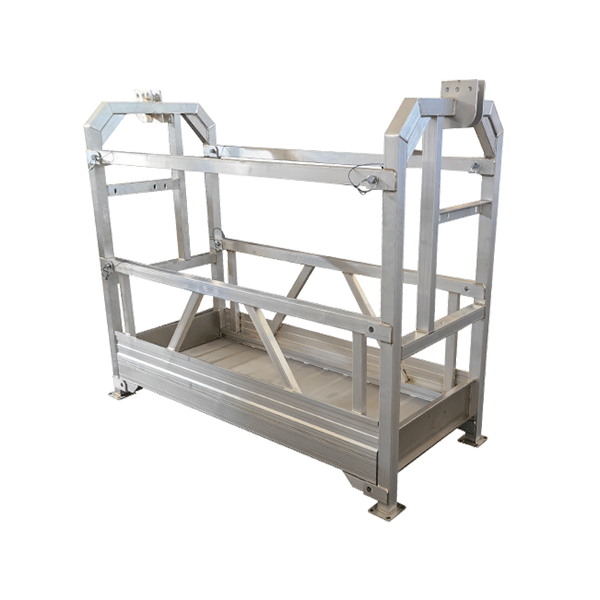

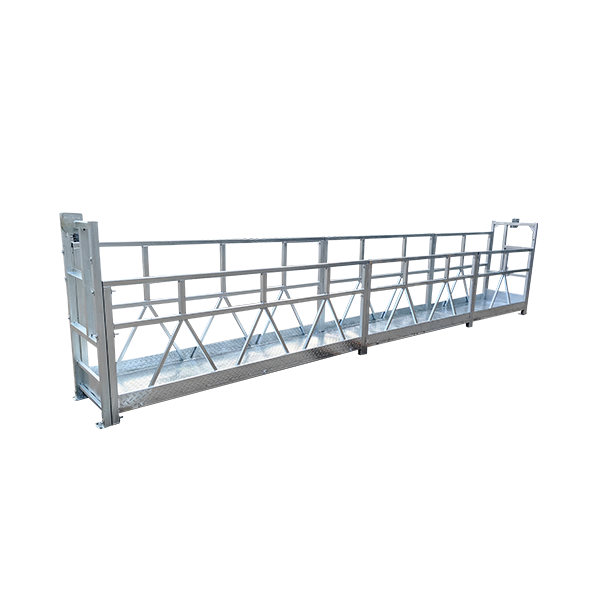

    Working Platform

    Length can be adjustable, aluminum alloy or steel(painting or galvanized optional)

  • 03

    Traction Hoist

    The materials and parts used in the hoist are top quality. This makes the hoist strong and reliable. It also provides great life expectancy.

  • 04

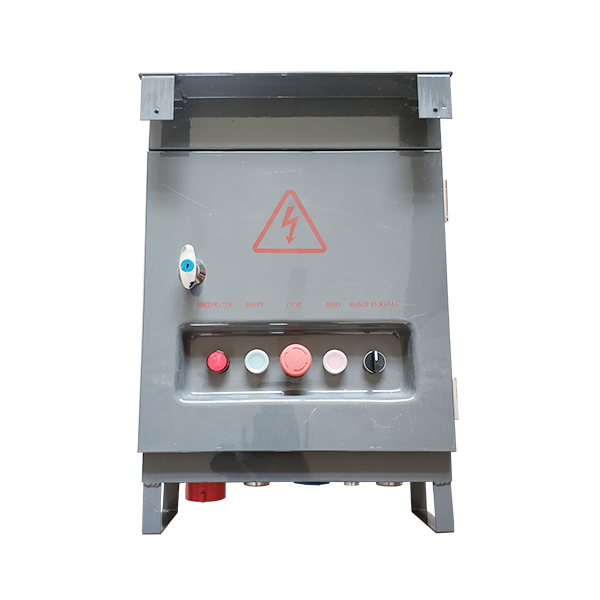

    Electric Control Box

    First class electrical components, professional waterproof design, and individually marked wires for easy identification.

  • 05

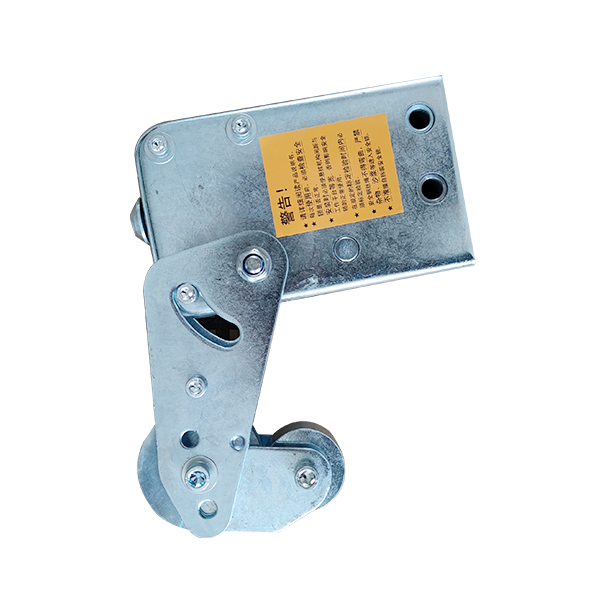

    Safety Lock

    Anti-Tilt type for end stirrup platform, a separate mechanical unit that can automatically lock safety wire rope when the working wire rope is broken or suspended platform tilts to its limits.

Specification

TypeZLP500ZLP630ZLP800ZLP1000
Rated Load500kg630kg800kg1000kg
Lifting Speed9m/min9m/min9m/min8.7m/min
Voltage -3phase380V (415V/220V)380V (415V/220V)380V (415V/220V)380V (415V/220V)
Frequency50Hz/60Hz50Hz/60Hz50Hz/60Hz50Hz/60Hz
Power in kW1.1×21.5×21.8×22.2×2
HoistLTD50LTD63LTD80LTD100
Safety LockLSF308LSF308LSF309LSF310
Dia. of Wire Rope4x31SW+FC-8.3mm4x31SW+FC-8.3mm4x31SW+FC-9.1mm4x31SW+FC-10.2mm
Platform Size (LxWxH)(2.5×2)x0.76×1.45M(2×3)x0.76×1.45M(2.5×3)x0.76×1.45M(2.5×3)x0.76×1.45M
Weight of Suspended Jibs340kg340kg340kg340kg
Weight of Lifting Part290kg Aluminium310kg Aluminium340kg Aluminium340kg Aluminium
Counter Weight800kg900kg1000kg1200kg
20GP Qty of Package10Sets10Sets9Sets9Sets


FAQs

Q: What are the main uses of electric suspension platforms?

A: The electric suspension platform is mainly used for the external construction, decoration and cleaning of high-rise buildings, as well as high-altitude operations such as elevator installation, large storage tanks and bridge maintenance. It provides a safe, efficient and convenient way to work at altitude.


Q: How to guarantee the safety performance of the electric suspension platform?

A: The safety performance of the electric suspension platform is mainly guaranteed through the following aspects: first, the structural design and material selection of the platform itself should meet the relevant standards and specifications; The second is equipped with perfect safety devices, such as safety lock, limit switch, etc.; Third, operators need to be professionally trained and licensed to work; Fourth, regular safety checks and maintenance.


Q: What do I need to pay attention to during the installation and disassembly of the electric suspension platform?

A: The installation and disassembly process of the electric suspension platform needs to be carried out in strict accordance with the instructions and operating procedures provided by the manufacturer. During the installation process, attention should be paid to the stability and safety of the platform to ensure that the connection of each component is firm and reliable. During the disassembly process, it is necessary to follow the prescribed sequence and steps to avoid damaging the platform and components.
